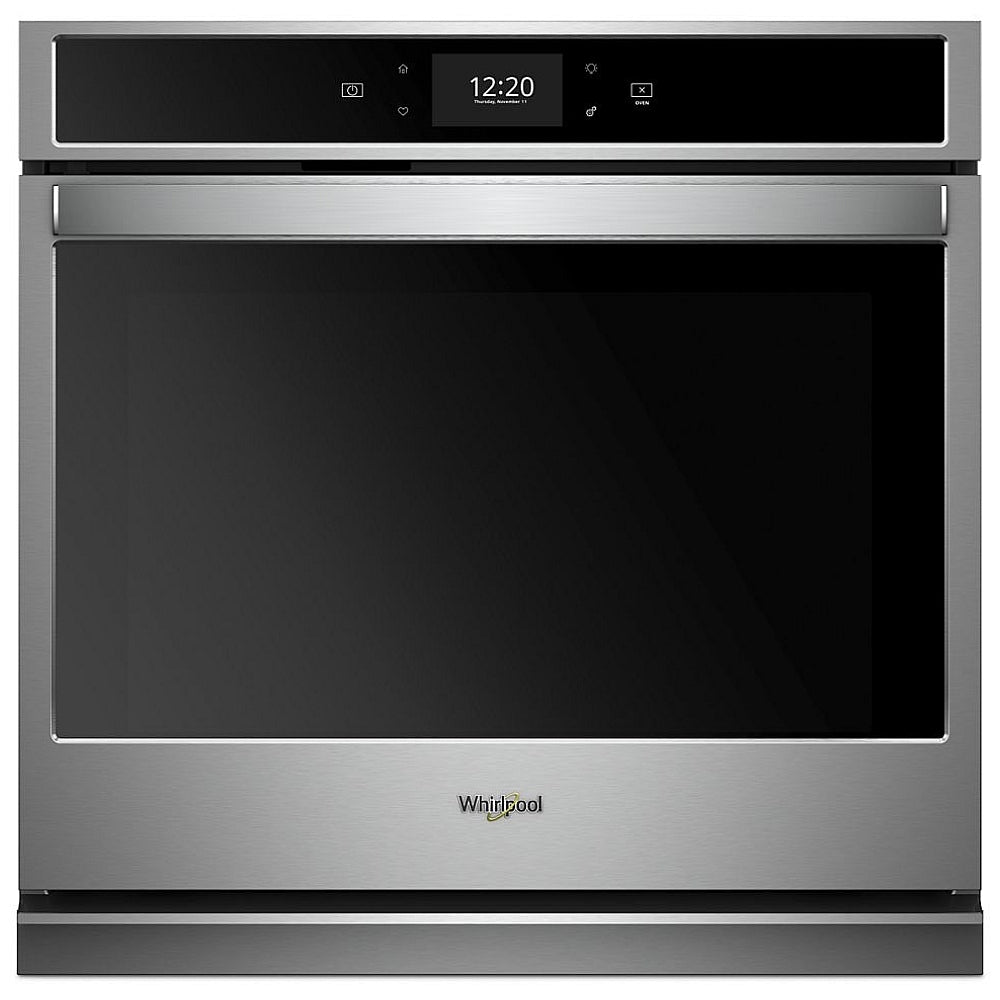

Whirlpool 5.0 cu. ft. Smart Single Convection Wall Oven with Air Fry WOS72EC0HS

FEATURES:

• Automatic Feature Updates

Select Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they re released.

• Air Fry Mode When Connected

Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected. Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

• True Convection with Third Heating Element

Cook foods faster

• Yummly® Guided Cooking**U.S. only.

Yummly® Guided Cooking makes meal prep easier by helping you answer the question what s for dinner? before it s even asked. Recipes with the Connected Fork icon in the Yummly® app include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to your Whirlpool® smart wall oven at the right times, so dinner s ready when your family s hungry.

• Voice control with a compatible voice-enabled device (US only)

Control your kitchen no matter what you ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.

• Fingerprint-Resistant

Available in a black stainless steel finish, easy-to-clean steel resists fingerprints and smudges.

• Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

• Multi-Step Cooking

Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to your appliance all at once.* The temperature automatically adjusts based on the recipe you enter for great results.*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.

• Convection Conversion

Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.

• Steam Clean Option

Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

• Scan-to-Connect Technology**U.S. only.

You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool® app, add your appliance and follow the guided experience to get up and running quickly

• Remote Start

When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are

• Keep Warm Setting

Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely through your Whirlpool® app or manually on the oven so food stays warm and ready to serve whether you're home or away.

• Party mode

Start preparing for guests from your smartphone or tablet with Party mode that automatically turns on the Keep Warm setting so dishes stay ready to serve

• Enhanced troubleshooting

Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos

• Guided service

Keep track of scheduled appointments and make sure issues are known using the Whirlpool® app to send data from the appliance directly to Whirlpool brand customer service

• Self-Close Door

Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.

• Temperature Sensor

Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.

• Rapid Preheat

Save time with faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly.

• Control Lock mode

Use your smartphone or tablet to remotely disable the control panel to avoid unintended use

• 5.0 cu. ft. Capacity
• FIT system

If your new wall oven doesn't fit, Whirlpool brand will pay up to $300 toward cabinet modification

• Extra-Large Window

Keep an eye on your meal through the extra-large oven window.

• ADA Compliant

This wall oven meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

• Sabbath mode

Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

• No Flush Kit Required for Flush Install

These wall ovens can be installed flush, creating a seamless visual line with cabinetry, without a separate accessory flush kit.

SPECIFICATIONS:

Certifications
Energy Rating	363
Kosher Consumer Friendly	Yes
Prop 65 & AB-1200	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . California AB-1200 Disclosures
Dimensions
Capacity	5.00
Depth	26-7/16 in
Height	28-3/4 in
Net Weight	121 lbs
Oven Capacity	5.0 cu. ft.
Width	30 in
Configuration and Overview
Fuel Type	Electric
LP Convertible	No
Oven Type	Single
Size	30 in
Oven Details
Automatic Shut-Off	Yes
Broiler Location	Top of Oven
Convection Functions	Bake, Broil, Roast
Delay Clean	Yes
Door Broil Position	Closed
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Yes
Interior Coating	Porcelain
Interior Color	Grey
Language Conversion	English/French/Spanish
Light Control	Oven Light Touch Pad
Light Type	Incandescent
Number of Bake Elements	1
Number of Broil Elements	1
Oven Interior Depth	19.0 in
Oven Interior Height	18.0 in
Oven Interior Width	25.0 in
Self-Cleaning Oven Racks	No
Temperature Conversion	Yes
Appearance
Flush Installation Approved	No
Handle Material	Stainless Steel
Details
Number of Oven Racks	3
Number of Rack Guides	6
Compatibility
Works With	WiFi, App, Remote Access, Voice Controlled
Refinements
Features	Works with Yummly, ADA Compliant
Description
Fuel Type	Electric

---

Configuration and Overview
Oven Type	Single
Fuel Type	Electric
Oven Cooking System	Convection
Star K Compliant	Yes
CUL	Yes
UL	UL
Amps	20
Volts	240
Oven Features
Hidden Bake Element	Yes
Bake Element Power	2800W
Broiler Element Power	3600W
Convection Element Type	True
Number of Oven Lights	2
Door Broil Position	Closed
Interior Coating	Porcelain
Interior Color	Grey
Oven Rack 1 Type	Standard
Oven Rack 2 Type	Standard
Oven Rack 3 Type	Standard
Number of Bake Elements	1
Convection Functions	Bake, Broil, Roast
Light Type	Incandescent
Light(s) Control	Oven Light Touch Pad
Self-Cleaning Oven Racks	No
Oven Controls
Display Color	Full Color
Language Conversion	English/French/Spanish
LP Convertible	No
Temperature Conversion	Yes
Controls
Door Type	Metal & Glass
Flush Installation Approved	No
Handle Color	Stainless Steel
Handle Material	Stainless Steel
Oven Window Size	Extra Large
ADA Compliant	ADA Height and Side and Front Reach Compliant
Door Removable	Yes
Dimensions
Depth	26 7/16
Height	28 3/4
Width	30
Cutout Depth	24
Cutout Height	28
Cutout Width	28 1/2
