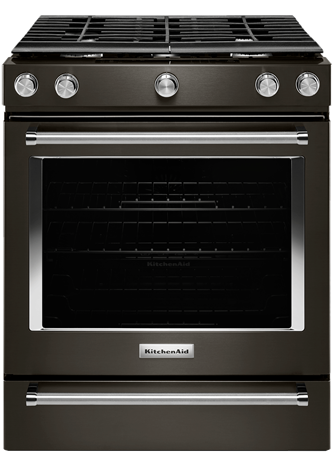

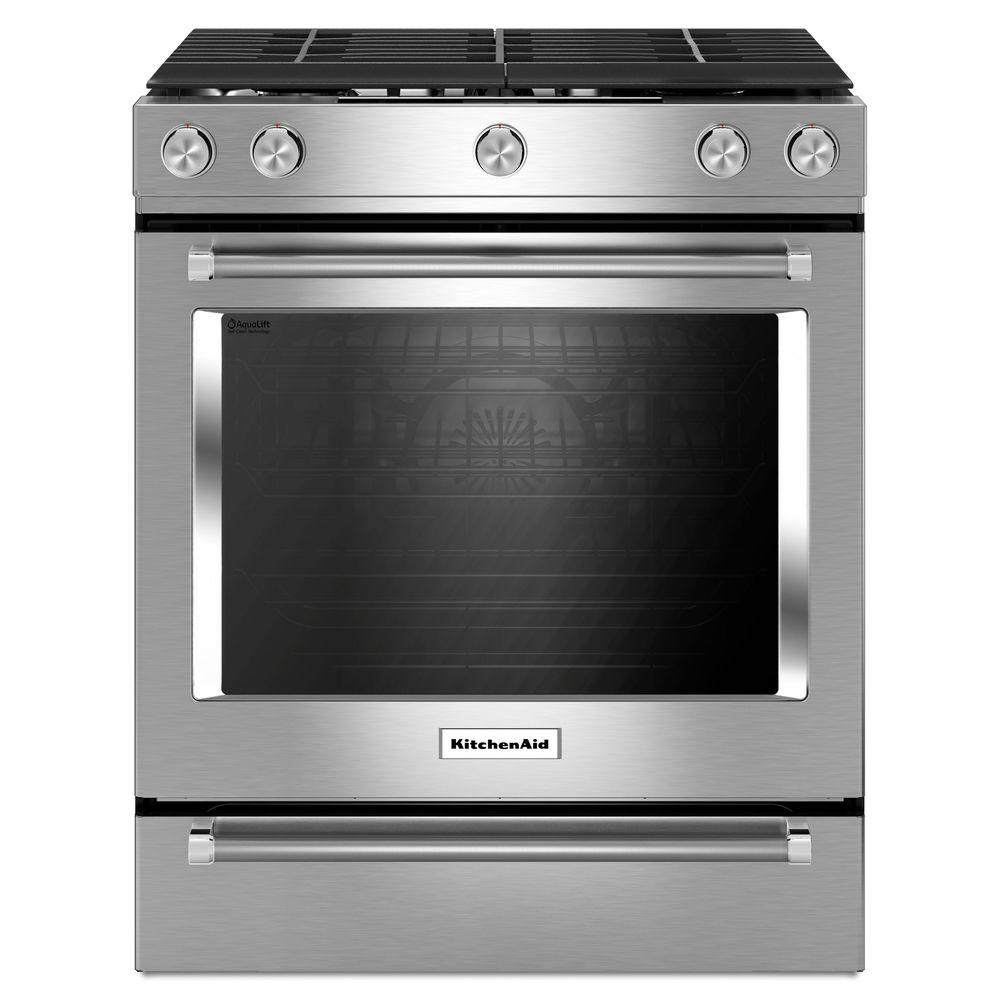

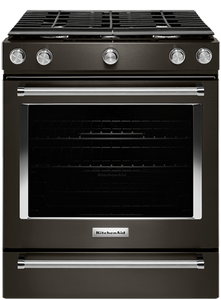

KitchenAid 30 Inch Slide-in Gas Range With Front Controls And Convection KSGG700EBS

Features

• 5 Burners (5k, 8k, 9.2k, 15k and 17k)

Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

• 5.8 cu ft. Oven Capacity

This gas slide-in range provides a large cooking capacity that s perfect for multiple dishes at once.

• Aqualift®

Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

• Continuous Interlocking Grates

Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.

• EasyConvect™ Conversion

Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.

• Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

• FIT Guarantee

Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

• Glass Touch Controls

Offer an intuitive, easy-to-use touch screen experience.

• Side Trim Accessory Kit

This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

• Steam Rack

Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

• Storage Drawer

Adds additional storage space that s perfect for pots, pans and baking sheets.

Specifications

Certifications
Ada Compliant	ADA Height and Operation Compliant
Prop65	Standard
Ul	Yes
Controls
Display Color	Red; White
Electronic Display Type	Digital
Cooktop Details
Auto Re-ignition	No
Cooktop Surface Color	Black
Cooktop Surface Material	Porcelain Coated Steel
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Ignition Type	Electronic
Details
Automatic Convection Conversion Temperature Adjust	Yes
Fuel Type	Gas
Lp Convertible	Yes
Oven Configuration	Single Oven
Oven Selections	Clock; Cook Time Indicator; Delay Start; Keep Warm Setting; Proofing; Sabbath Mode; Steam Bake; Warm Zone
Power On Indicator Light	Yes
Power Outage Compatible	No
Range Configuration	Slide-In
Range Drawer Type	Storage Drawer
Range Type	Slide-in
Dimensions
Carton Depth	30.5
Carton Height	43.5
Carton Width	31.5
Depth Closed Excluding Handles	26.375
Depth Closed Including Handles	28.875
Depth With Door Open 90 Degree	48.75
Gross Weight	227
Net Weight	0
Oven Interior Depth	20.625
Oven Interior Height	22.125
Oven Interior Width	24.125
Electrical
Power Cord Included	Yes
Element/burner Details
Center Rear Element-burner Power	8,000 BTU
Center Rear Element-burner Type	Sealed Burner
Cooktop Element Style	Gas Burner
Left Front Element-burner Power	17,000 BTU
Left Front Element-burner Type	Sealed Burner
Left Rear Element-burner Power	5,000 BTU
Left Rear Element-burner Type	Sealed Burner
Number of Cooking Element-burners	5
Right Front Element-burner Power	15,000 BTU
Right Front Element-burner Type	Sealed Burner
Right Rear Element-burner Power	9,200 BTU
Right Rear Element-burner Type	Sealed Burner
Exterior Details
Door Type	Metal & Glass
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Towel Bar
Knob Color	Stainless Steel
Knob Type	Metal
Oven Control Type	Electronic Touch
Oven Window Size	Large
Grate Details
Grate Details	Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Number of Grates	2
Oven Details
Bake Element Power	18,000 BTU
Broiler Element Power	13,000 BTU
Broiler Location	Top of Oven
Convection Element Power	900
Convection Element Type	Fan
Convection Functions	Bake; Broil; Roast
Hidden Bake Element	Yes
Interior Color	Grey
Number of Oven Lights	2
Number of Oven Racks	3
Number of Rack Guides	7
Oven Cleaning Type	AquaLift® Steam Clean
Oven Cooking System	Convection
Oven Light Type	Incandescent
Oven Rack Type	1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack; Heavy Duty; Max Capacity; Steam Rack

---

Configuration and Overview
Fuel Type	Gas
Range Type	Slide-in
Cooktop Features
Cooktop Element Style	Gas Burner
Cooktop Surface Color	Black
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	5
Center Rear Element-Burner Power	8000 BTU
Center Rear Element-Burner Type	Sealed Burner
Left Front Element-Burner Power	17,000 BTU
Left Front Element-Burner Type	Sealed Burner
Left Rear Element-Burner Power	5000 BTU
Left Rear Element-Burner Type	Sealed Burner
Right Front Element-Burner Power	15,000 BTU
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Power	9200 BTU
Right Rear Element-Burner Type	Sealed Burner
Number of Grates	2
Oven Features
Number of Oven Lights	2
Automatic Convection Conversion Temperature Adjust	Yes
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Power On Indicator Light	Yes
Light Type	Incandescent
Oven Rack Type	Max Capacity, Steam Rack, Heavy Duty
Self-Cleaning	AquaLift® Steam Clean
Controls
Drawer Type	Storage Drawer
Handle Material	Metal
Handle Type	Towel Bar
Selections	Keep Warm Setting, Steam Bake, Proofing, Cook Time Indicator, Delay Start, Sabbath Mode, Clock, Warm Zone
ADA Compliant	ADA Height and Operation Compliant
UL	UL
Dimensions
Height	36
Width	29 7/8
